CAMHAFTS SINGLE STAGE 1
Read moreShow less
          €488.59
                      (tax incl.)






                Reference:

                                                        09250459

          Brand:







            Love0

Add to compare0

Add to wishlist

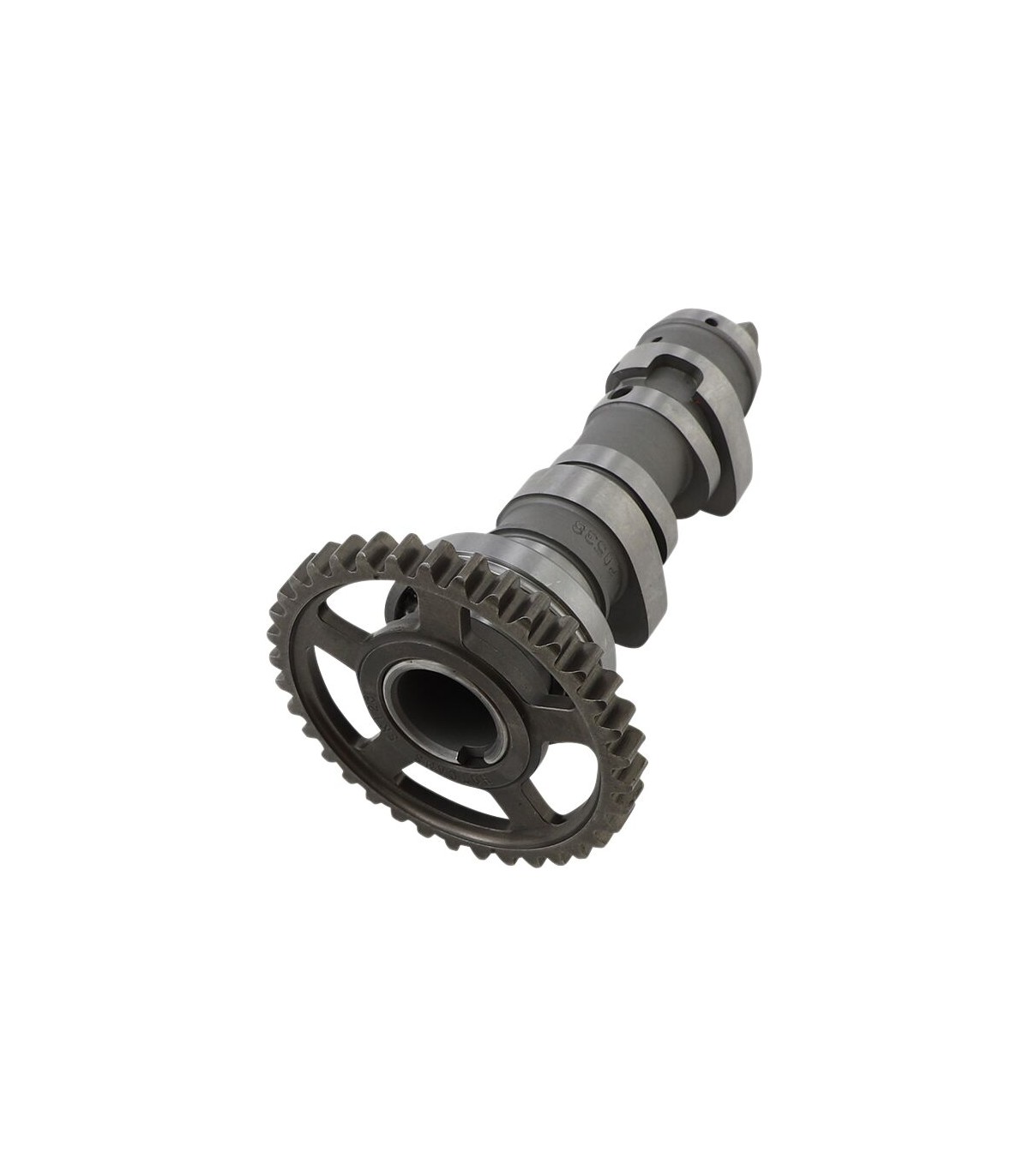

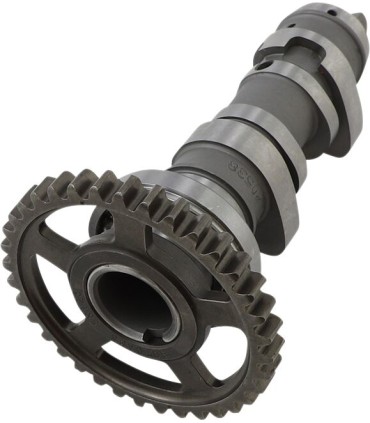

                  Camshaft Stage 1Designed and dyno proven in the USAEngineered by using valvetrain softwareAdds a 5%-10% power gainCNC machined from 8620 billet, case hardened steel for an exact fit and lobe profileSelect cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-endDesigned for low end torque.Engineered to be drop in cams that use stock valve springs (unless otherwise noted).Improved torque below 9000 rpm with improved peak horsepower over OEM cam.
Uses stock valve springs and rockers.
Uses auto-decompression mechanism.
For single cam engine.
Intake Valve Lash: 0.160 mm.
Exhaust Valve Lash: 0.280 mm.

                Read moreShow less


        09250459



      Data sheet
- Units
 - Each

- Product Name
 - Camshaft

- Type
 - Stage 1

- Application
 - Exhaust| Intake

- Intake Lift
 - 9,60 mm

- Intake Lobe Centerline
 - 109°

- Exhaust Lobe Centerline
 - 104°

- Exhaust Lift
 - 8,70 mm

- Intake Duration
 - 238°

- Exhaust Duration
 - 248°
