CAMS CHN DR 585C 07-17TC
CAMSHAFT SET 585C CHAIN-DRIVEN
Read moreShow less
€496.81
(tax incl.)
Reference:
09250349
Brand:
Love0
Add to compare0
Add to wishlist

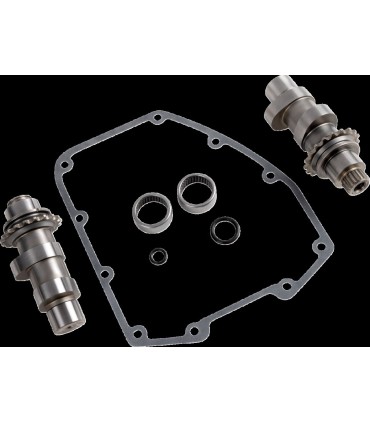

585C Chain Drive Camshaft KitDesigned for 88" to 107" engines with compression ratios from 10.0:0 to 10.5:1 and 100" and 107" engines with compression ratios 9.7:1 to 10.5:1Strongest from 3500-6000 rpm for 88" to 103" engines and 2500-5000 rpm for larger enginesMade in the USAInstaller must check coil bind, valve to valve clearance and valve to piston clearance.Cams for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system.
Read moreShow less
09250349
Data sheet
- Units
- Kit
- Product Name
- Cam Kit
- Type
- Chain
- Application
- Exhaust| Intake
- Intake Lift
- 0,585"
- Intake Lobe Centerline
- 102,5°
- Exhaust Lobe Centerline
- 110°
- Exhaust Lift
- 0,585"
- Intake Duration
- 245°
- Exhaust Duration
- 260°
- Exhaust Open
- 60°
- Exhaust Close
- 20°
- Exhaust Lift at TDC
- 0,179"
- Intake Close
- 45°
- Intake Open
- 20°
- Grind
- 585 Series
- Intake Lift at TDC
- 0,186"
