CAMSHAFT SET 570CE EASY START CHAIN-DRIVEN
Read moreShow less
€712.45
(tax incl.)
Reference:
09250444
Brand:
Love0
Add to compare0
Add to wishlist

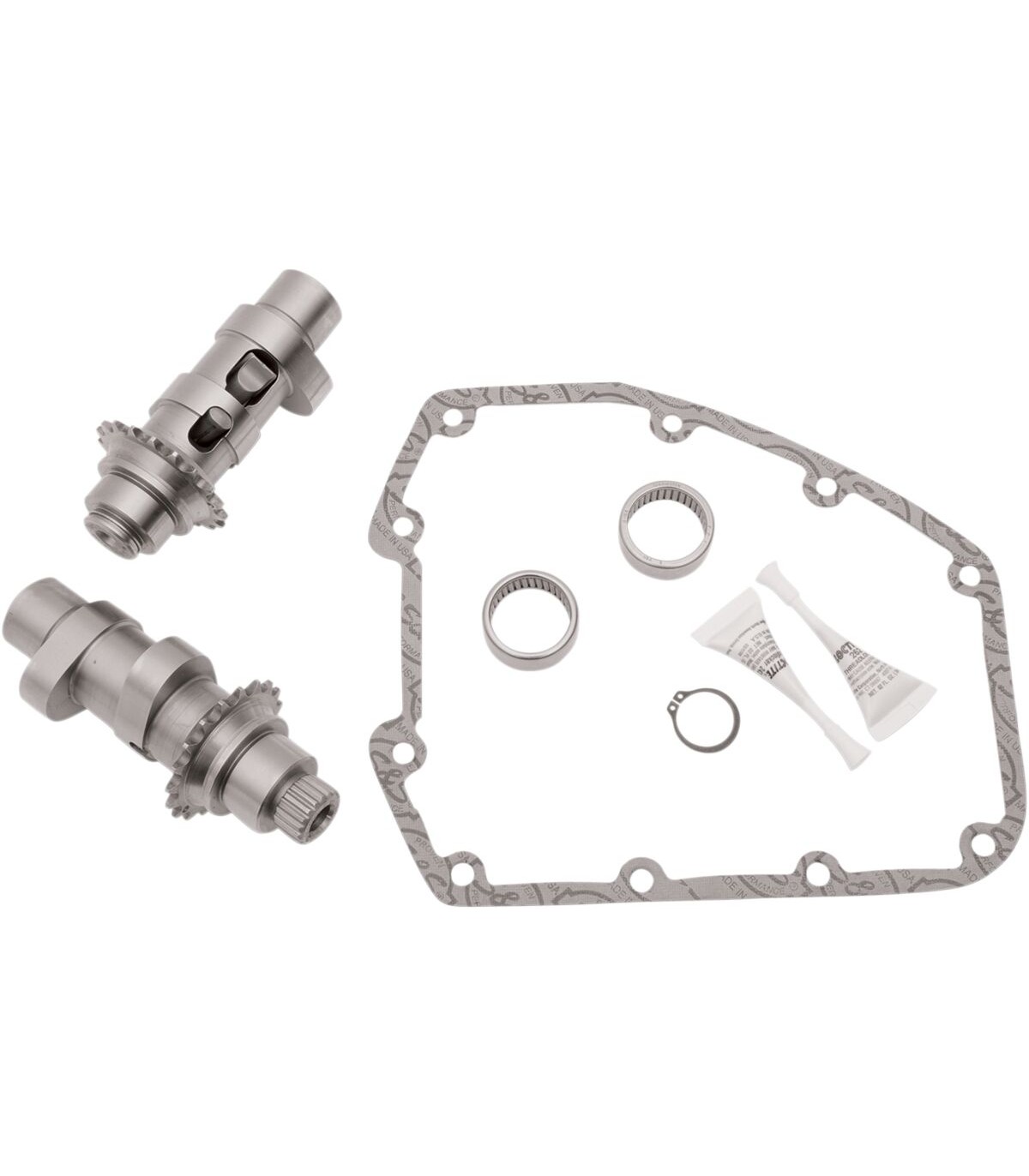

570 Easy Start Camshaft KitAllows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performanceDesigned for 88"/95"/103" engines with compression ratios between 9.0:1 and 10.0:1Power increase across entire power band from 3200 rpm - 5700 rpmBolt-in Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions Made in the USAInstaller must check coil bind, valve-to-valve clearance and valve-to-piston clearance.Not for models with OEM compression releases.
Read moreShow less
09250444
Data sheet
- Units
- Kit
- Product Name
- Camshaft Kit
- Type
- Chain
- Model
- Easy Start
- Application
- Exhaust| Intake
- Intake Lift
- 0,570"
- Intake Lobe Centerline
- 100°
- Exhaust Lobe Centerline
- 107,5°
- Exhaust Lift
- 0,570"
- Intake Duration
- 240°
- Exhaust Duration
- 250°
- Exhaust Open
- 55°
- Exhaust Close
- 20°
- Exhaust Lift at TDC
- 0,179"
- Intake Close
- 40°
- Intake Open
- 20°
- Grind
- 570 Series
- Intake Lift at TDC
- 0,187"
