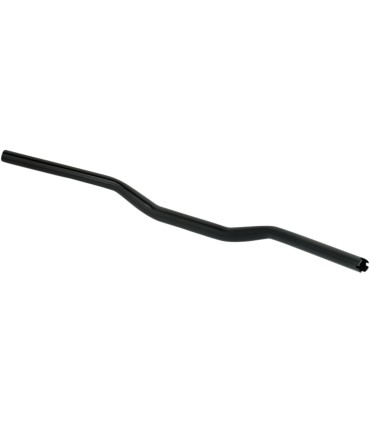

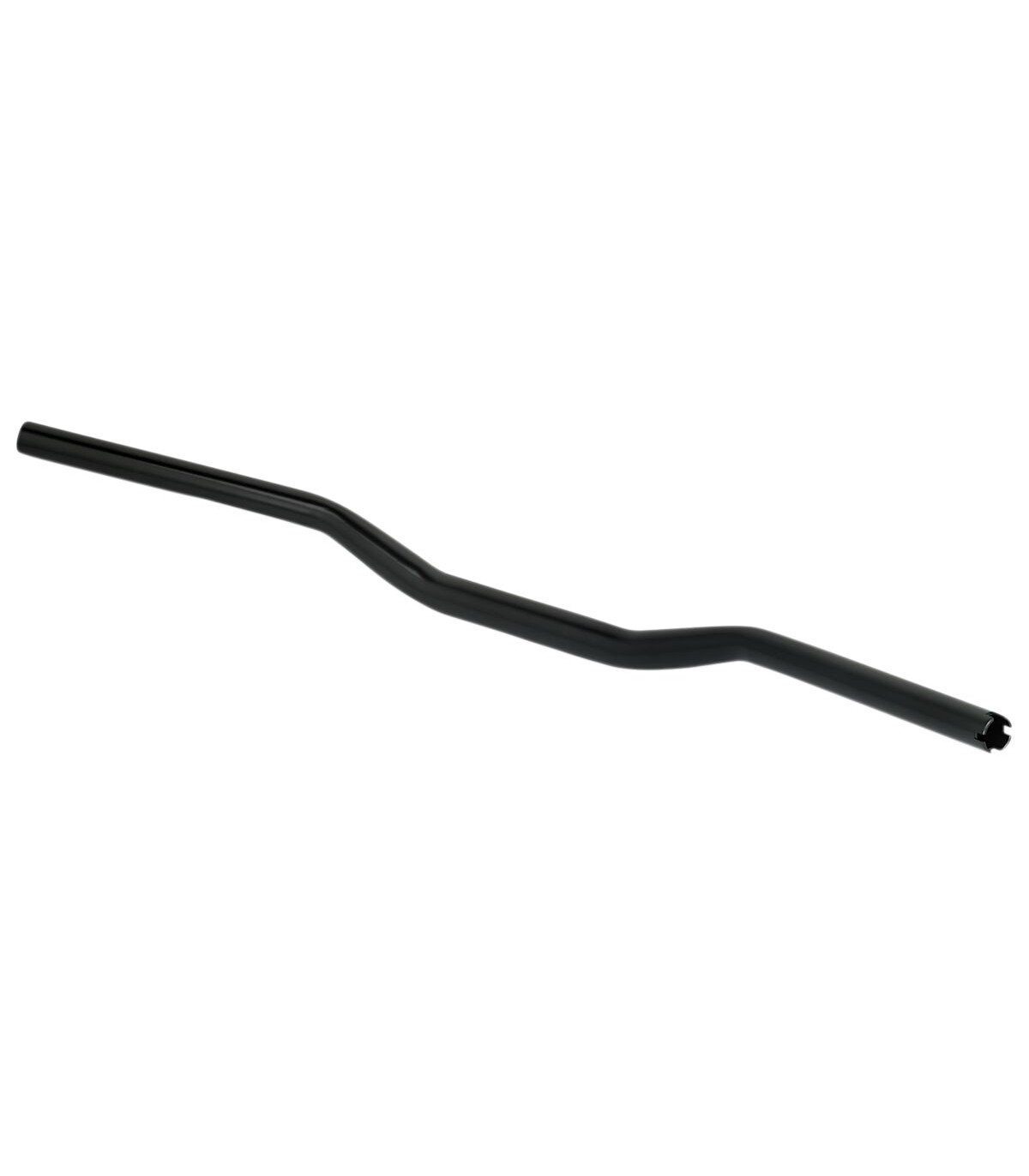

HANDLEBAR TRKR O/S TBW BK
Tracker O/S HandlebarManufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubingAll bends are created with internal mandrels on a CNC bender to reduce flat spots in the bendsAll welded joints are precision mitered and TIG weldedIf grip sets aren't installed, bars will be 1-1/8" shorter than listedThese bars will not mount to normal 1” clamps found on the majority of stock and aftermarket risers1-1/8" outer diameter center section tapers to 1" at the grip ends.
Read moreShow less
06014659
Data sheet
- Units
- Each
- Product Name
- Handlebar
- Color/Finish
- Black
- Base Color
- Black
- Material
- Chromoly
- Features
- Notched for Throttle-By-Wire| Smooth, Unknurled
- Width
- 77,5 cm (30-1/2")
- Clamping Diameter
- 28,6 mm (1-1/8")
- Height
- 57,2 mm (2-1/4")
- End Rise
- 44,5 mm (1-3/4")
- Handlebar Diameter
- 28,6 mm (1-1/8")
- Rise
- 57,2 mm (2-1/4")
- Controls Diameter
- 25,4 mm (1")
- Type/Bend
- Tracker O/S
- Pullback/Sweep
- 63,5 mm (2-1/2")
- Center Width
- 12,5 cm (5")
