PSTN KT YAM YZ450F STD A
PSTN KT YAM YZ450F STD A
Read moreShow less
€222.96
(tax incl.)
Reference:
09106123
Brand:
Love0
Add to compare0
Add to wishlist
Piston Kit for 4 StrokeEnhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubricationLightweight piston with a tight piston wall clearance for a quieter running engineSkirt coated for reduced friction and improved break in performanceRing land treatment for improved ring seal and oil controlDouble bridged forging design where notedKit includes piston, rings, wrist pin and pin locks12.0:1 CR '06-'09 YFZ450 carb.
12.3:1 CR ''12-'13 YFZ450 carb.
12.3:1 CR '09-'13 YFZ450R EFI.
12.3:1 CR '10-'11 YFZ450X EFI.
12.5:1 CR '17 YFZ450 EFI.
12.5:1 CR '14-'24 YFZ450R EFI.
12.6:1 CR '04-'05 YFZ450 carb.
62.00 mm stroke for '04-'05.
63.40 mm stroke for '06-'24.

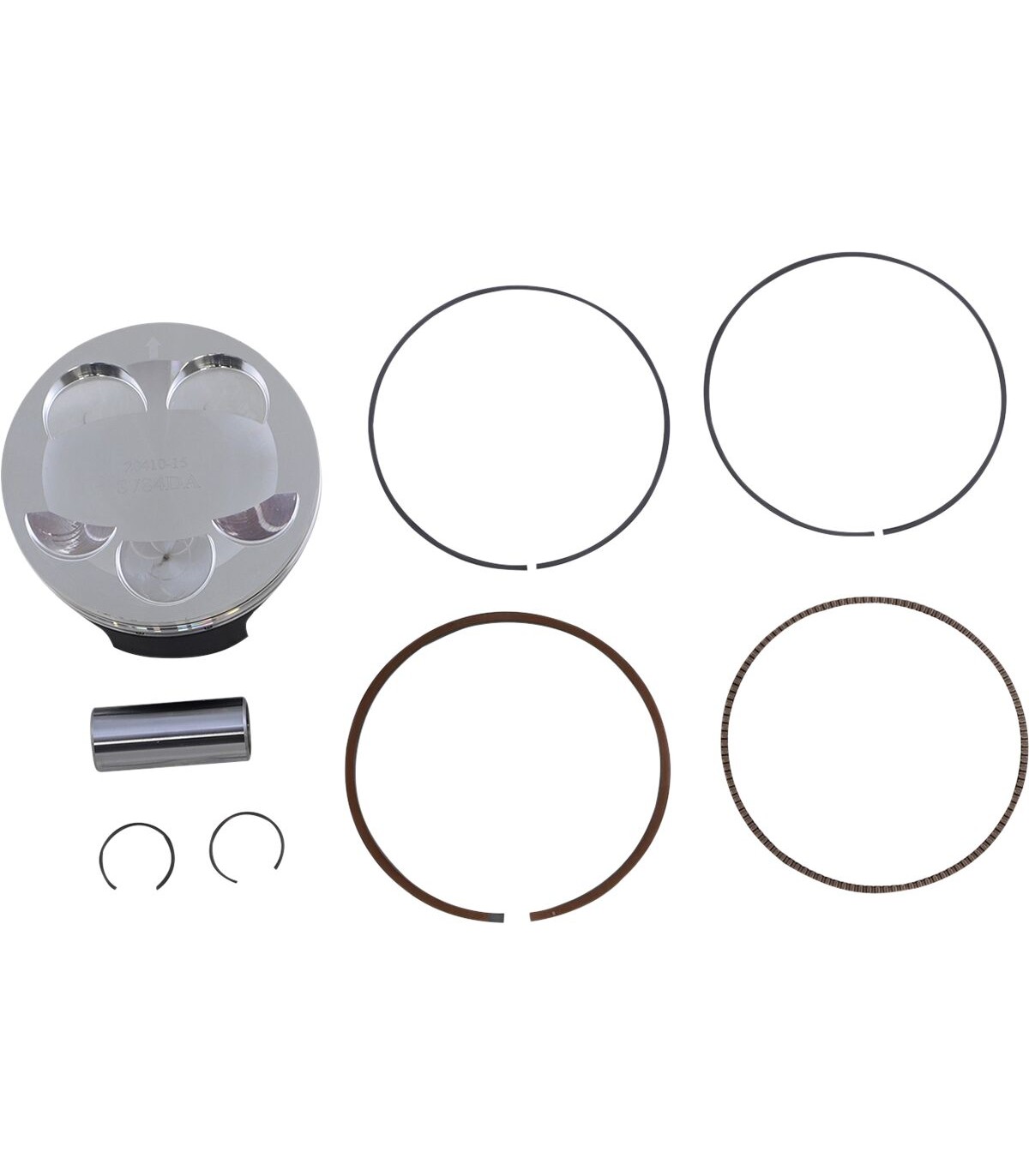

Kit Includes:
• Piston #8784DA
• Ring Set #RIK95.00
• Wrist Pin #WP029-SP
• Retaining Clips #CW20
Read moreShow less
09106123
Data sheet
- Units
- Kit
- Product Name
- Piston Kit
- Style
- Standard Size A
- Model
- Pro Series
- Bore - Oversize Metric
- Standard
- Piston Material
- Aluminum Alloy| Forged
- Bore - Oversize
- Standard
- Engine Type
- 4-Stroke
- Bore Size
- 95,00 mm
- Stroke Length
- 62,00 mm| 63,40 mm
- Compression Ratio Imperial
- 12.0:1| 12.3:1| 12.5:1| 12.6:1
- Compression Ratio
- 12,0:1| 12,3:1| 12,5:1| 12,6:1
- Piston Size
- 94,95 mm
- Piston Size Metric
- 94.95 mm
