PISTON HON XR650C 1MM
PISTON KIT
Read moreShow less
€246.00
(tax incl.)
Reference:
4562M10100
Brand:
Love0
Add to compare0
Add to wishlist
Piston Kit Forged Series for 4-StrokeForged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strengthDedicated forgings allow for optimized strength-to-weight ratioIdeal for multiple purpose ridingKit includes piston, wrist pin, rings and circlipsCylinder boring is required.

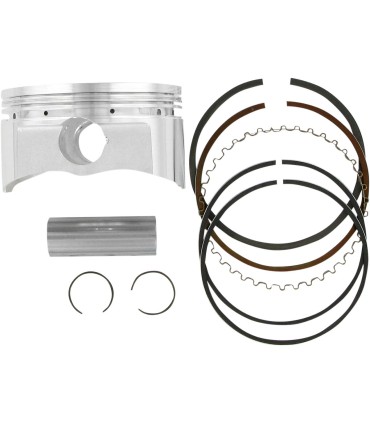

Kit Includes:
• 1x Piston
• 1x Ring Set #3977XH
• 1x Wrist Pin #S627
• 1x Circlip Set #CW24
Read moreShow less
4562M10100
Data sheet
- Units
- Kit
- Product Name
- Piston Kit
- Model
- Forged Series
- Bore - Oversize Metric
- +1.00 mm
- Piston Material
- Forged 2618 Aluminum
- Skirt Coating
- Non-Coated
- Bore - Oversize
- +1,00 mm
- Engine Type
- 4-Stroke
- Bore Size
- 101,00 mm
- Piston Diameter
- 100,92 mm
- Piston Diameter Metric
- 100.92 mm
- Stroke Length
- 82,00 mm
- Displacement
- 650 cc
- Compression Ratio Imperial
- 8.7:1
- Compression Ratio
- 8,7:1
