ProX Piston Kit for Yamaha RD/DT125LC

Technical Specifications of the ProX Piston Kit for Yamaha RD/DT125LC

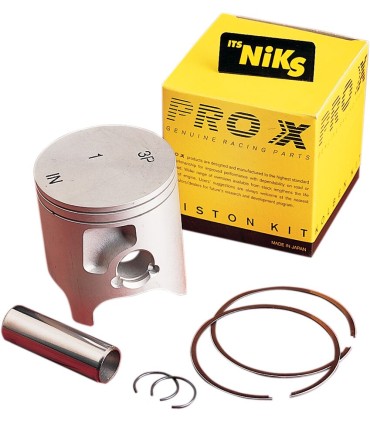

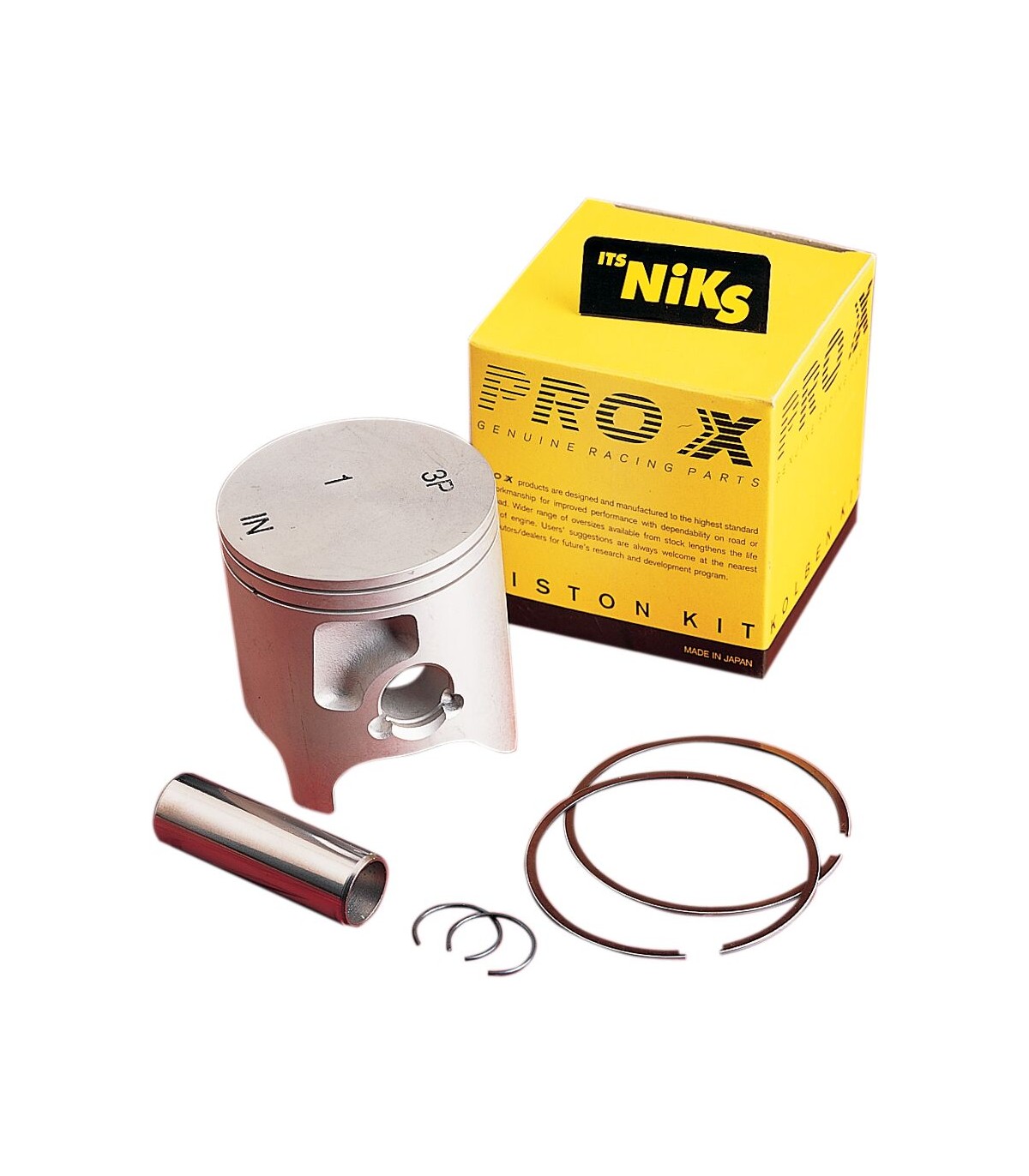

The ProX Piston Kit is designed for 125cc two-stroke engines, delivering optimal performance for your Yamaha RD/DT125LC. This kit includes:

• Piston: High-quality aluminum alloy, precisely machined to ensure enhanced durability and performance.
• Rings: Two steel rings, providing effective sealing and resistance to wear.
• Pins and Clips: Supplied for easy and secure installation.

The specific dimensions of the piston are as follows:

• Piston Diameter: 57.00 mm (+1.00 mm over the standard size of 56.00 mm).
• Compression Height: 22.00 mm.
• Piston Head Type: Domed, optimizing combustion for improved performance.
• Distance Between Pins: 20.25 mm.
• Pin Diameter: 16.00 mm.

Advantages of the ProX Piston Kit for Yamaha RD/DT125LC

Choosing the ProX Piston Kit offers several benefits:

• Enhanced Performance: Thanks to its precise design and use of quality materials, this kit ensures better throttle response and quicker acceleration.
• Increased Durability: ProX pistons are made with a low-expansion aluminum alloy, guaranteeing a long service life even under demanding riding conditions.
• Perfect Compatibility: Specifically designed for Yamaha RD/DT125LC models, ensuring a seamless fit and hassle-free installation.
• Ease of Installation: The kit comes complete with all necessary components, allowing for quick and efficient assembly.

Installation Tips for the ProX Piston Kit on Yamaha RD/DT125LC

To ensure optimal installation of the ProX Piston Kit on your Yamaha RD/DT125LC, follow these steps:

1. Preparation: Ensure the engine is clean and all parts are in good condition. Check the cylinder and sleeve for any wear or damage.
2. Installation: Lightly lubricate the piston and rings before inserting them into the cylinder. Properly align the rings with the cylinder grooves to prevent seizing.
3. Verification: After installation, manually rotate the engine to ensure the piston moves freely without excessive resistance. Also, check for any oil or compression leaks.
4. Break-In: Perform a gradual break-in of the engine by avoiding sudden accelerations during the initial kilometers. This will allow the rings to properly seat and ensure optimal sealing.

By following these steps, you guarantee maximum performance and increased longevity of your engine.

At AEB Development, we share your passion for mechanics and performance. Each part we offer is carefully selected to provide you with the best in technology and reliability. Prepare your Yamaha RD/DT125LC with the ProX Piston Kit and feel the difference with every acceleration. Because every detail counts for uncompromised performance.
