PISTON KIT YAMAHA
PISTON KIT
Read moreShow less
€230.65
(tax incl.)
Reference:
09103939
Brand:
Love0
Add to compare0
Add to wishlist

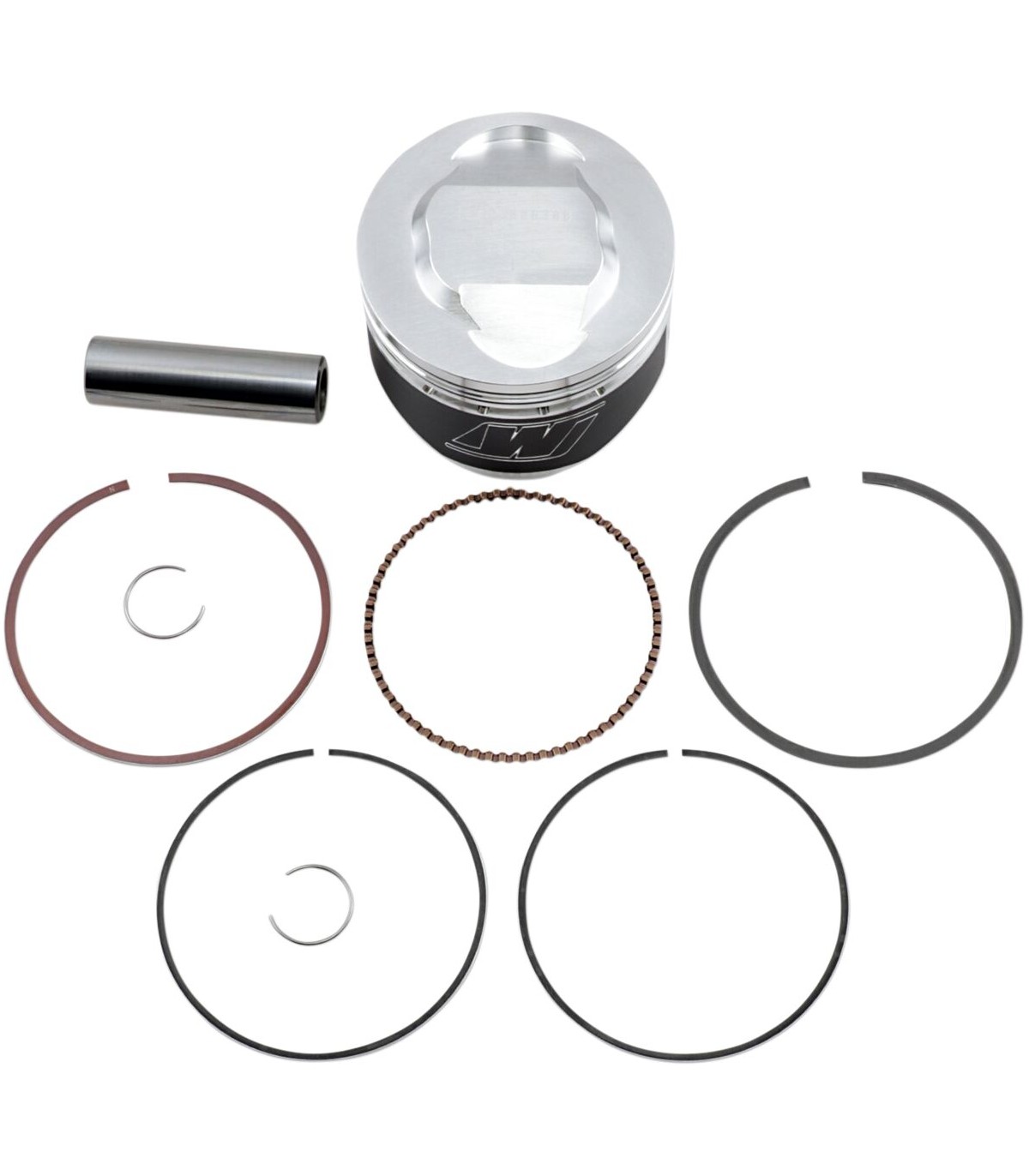

Piston Kit Forged Series for 4-StrokeForged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strengthDedicated forgings allow for optimized strength-to-weight ratioIdeal for multiple purpose ridingKit includes piston, wrist pin, rings and circlipsKit Includes:
• 1x Piston
• 1x Ring Set #3268XC
• 1x Wrist Pin #S376
• 1x Circlip Set #CW19
Read moreShow less
09103939
Data sheet
- Units
- Kit
- Product Name
- Piston Kit
- Model
- Forged Series
- Bore - Oversize Metric
- Standard
- Piston Material
- Forged 2618 Aluminum
- Skirt Coating
- ArmorGlide®
- Bore - Oversize
- Standard
- Engine Type
- 4-Stroke
- Bore Size
- 83,00 mm
- Piston Diameter
- 82,95 mm
- Piston Diameter Metric
- 82.95 mm
- Stroke Length
- 64,50 mm
- Displacement
- 349 cc
- Compression Ratio Imperial
- 12.0:1
- Compression Ratio
- 12,0:1
