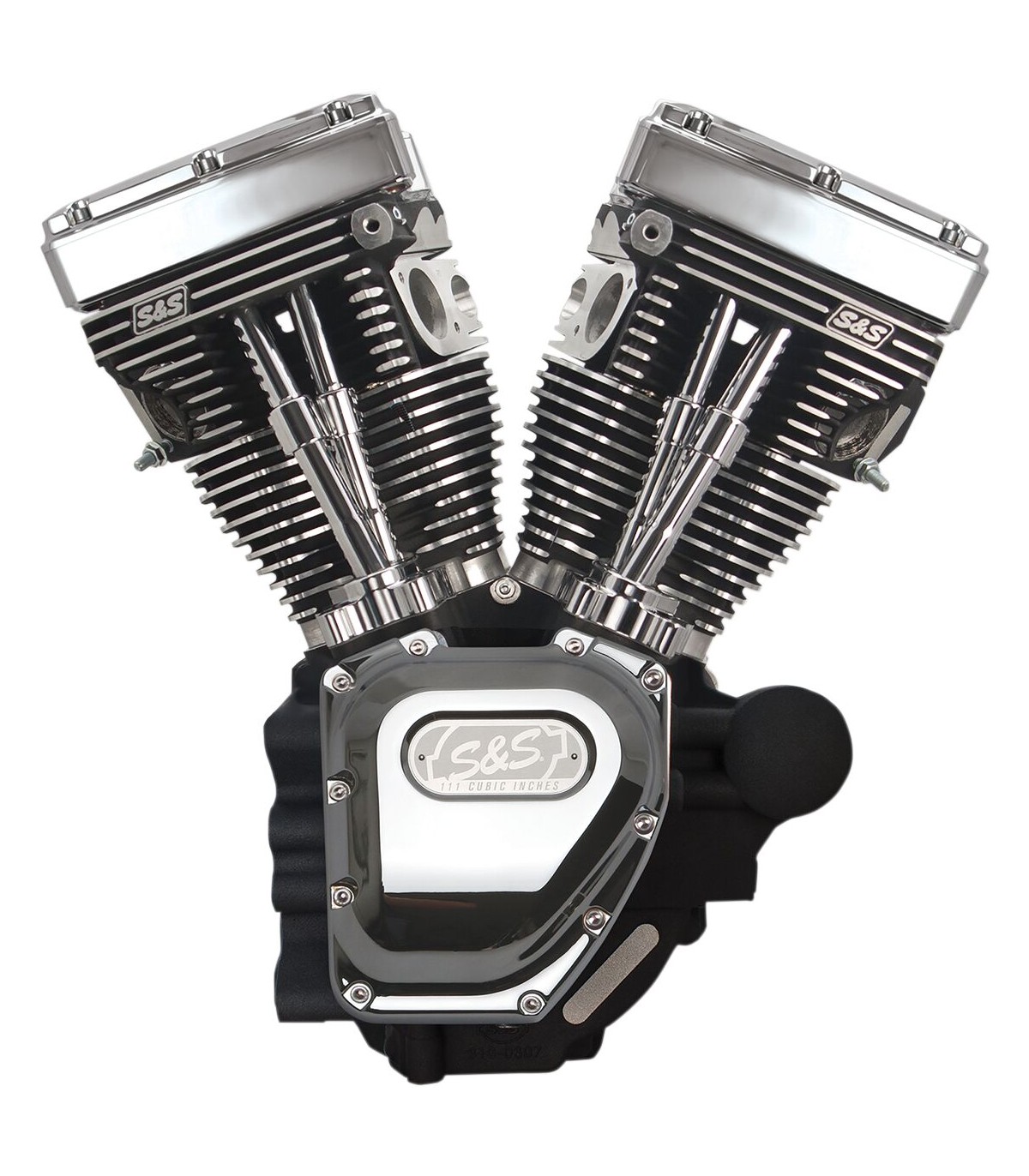

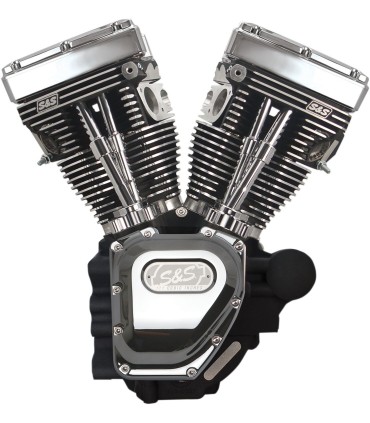

T111 Long Block EngineSuper Stock™ heads and crankcaseEasy start 585 gear drive cams with redesigned cam coverTC3 oil pump and cam plateMade in the USAIntake system not included; compatible with stock or aftermarket intake systems.Revised oil routing on '99-'06 Touring models make it so an oil line installation kit is no longer required.Cylinder heads on T-Series long block engines are '99-'05 style. Owners of '06 models will need to purchase a set of '99-'05 style, offset intake flanges.Cylinder heads on this engine is specially machined to compensate for the non-stock cylinder length. As a result, it is compatible with the manifold and throttle body with stock length intake runners. In addition, the breather vent bolt location has been adjusted so it is in the stock location, so stock style air cleaner back plates will bolt up to this engine.Not recommended for trike models.
Requires oil line installation kit.

                Read moreShow less


        09010238



      Data sheet
- Units
- Each
- Product Name
- Engine
- Type
- Long Block
- Color/Finish
- Chrome| Wrinkle Black
- Model
- T-Series
- Bore Size
- 4,125"
- Stroke Length
- 4,125"
- Displacement
- 111"
- Compression Ratio Imperial
- 9.8:1
- Compression Ratio
- 9,8:1
- Piston Head Shape
- Flat Top
