TOP END PISTON KIT
Lire la suiteShow less
170,57 €
TTC
Référence:
09030933
Marque:
Aimer0
Ajouter à la comparaison0
Ajouter à la liste de souhaits

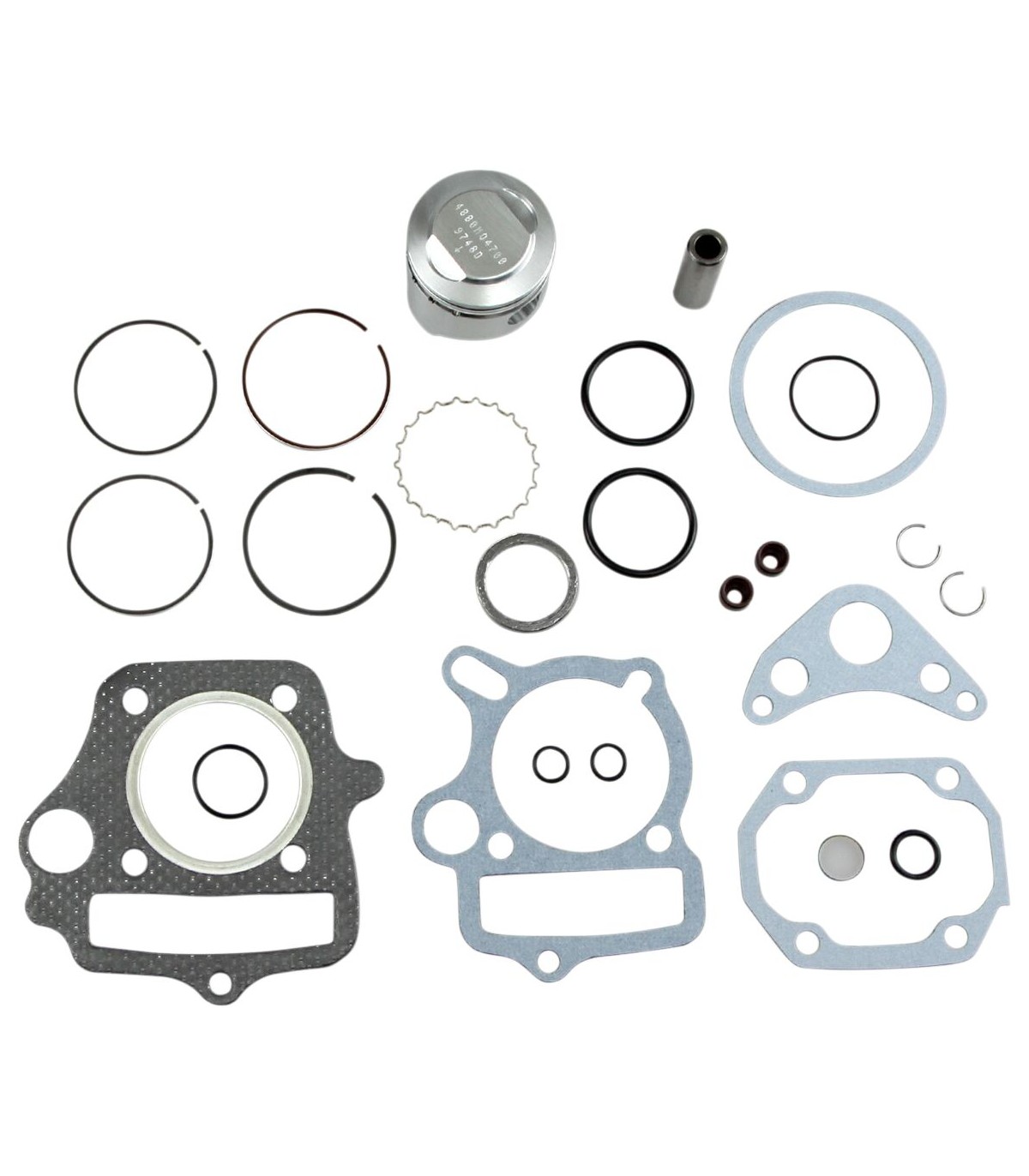

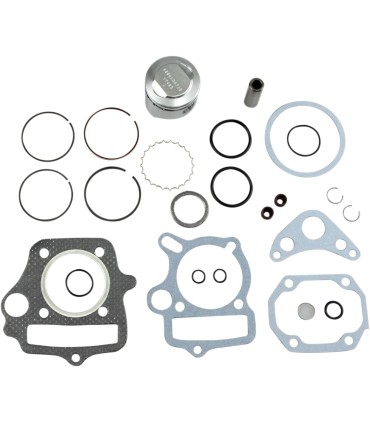

Piston Kit with Gaskets for 4-StrokeComplete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engineWiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)Cylinder sleeves must be purchased separately.Correct replacement ring style is stamped on the dome of piston. Example: "C" for "XC", "G" for "XG" and "H" for "XH".Kit Includes:
• Forged Series Piston
• Ring Set
• Wrist Pin
• Circlips
• Gaskets
Lire la suiteShow less
09030933
Fiche technique
- Units
- Kit
- Product Name
- Rebuild Kit
- Type
- Top End
- Model
- Forged Series
- Bore - Oversize Metric
- Standard
- Piston Material
- 4032 Aluminum Alloy
- Skirt Coating
- Non-Coated
- Bore - Oversize
- Standard
- Engine Type
- 4-Stroke
- Bore Size
- 47,00 mm
- Piston Diameter
- 46,97 mm
- Piston Diameter Metric
- 46.97 mm
- Stroke Length
- 41,40 mm
- Displacement
- 72 cc
- Compression Ratio Imperial
- 10.5:1
- Compression Ratio
- 10,5:1
