ENGINE REBUILD KIT
Lire la suiteShow less
          1 156,85 €
                      TTC






                Référence:

                                                        09031525

          Marque:







            Aimer0

Ajouter à la comparaison0

Ajouter à la liste de souhaits

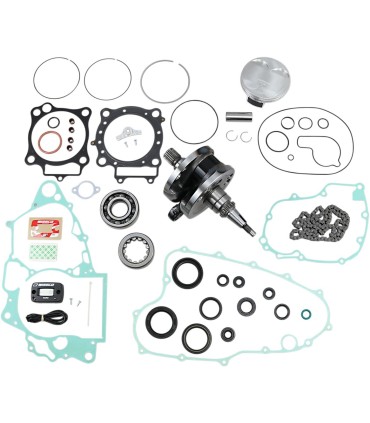

                  Engine Rebuild Kit - Garage Buddy - 4-StrokeKit includes a premium forged piston kit with stock compression ratio and a high-quality cam chainTop and bottom end components are included for a complete engine rebuildCrankshaft and rod assembly designed and inspected to assure durabilityMain bearings, seals, gaskets, a Wiseco hour meter and bracket are also included in the kitKit Includes:
• Crankshaft Assembly
• Piston Kit #4820M09600
• Top End Gasket #W6669
• Bottom End Gasket #WB1154
• Main Bearing #B5038/B5050
• Cam Chain #CC002
• Hour Meter with Mount #W8063/W8062
• Maxima Assembly Lube

                Lire la suiteShow less


        09031525



      Fiche technique
- Units
 - Kit

- Product Name
 - Rebuild Kit

- Type
 - Engine

- Features
 - Cam Chain

- Style
 - Forged Series Piston

- Model
 - Garage Buddy

- Bore - Oversize Metric
 - Standard

- Piston Material
 - 2618 Aluminum Alloy

- Skirt Coating
 - ArmorGlide®

- Bore - Oversize
 - Standard

- Engine Type
 - 4-Stroke

- Bore Size
 - 96,00 mm

- Piston Diameter
 - 95,94 mm

- Piston Diameter Metric
 - 95.94 mm

- Displacement
 - 450 cc

- Compression Ratio Imperial
 - 12.0:1

- Compression Ratio
 - 12,0:1
