TOP END PISTON KIT
Read moreShow less
          €532.69
                      (tax incl.)






                Reference:

                                                        09102001

          Brand:







            Love0

Add to compare0

Add to wishlist




                  High-Performance Forged Piston KitWiseco's high-tech manufacturing ensures greater operating strength and lower expansion at high temperaturesKits include forged pistons with ArmorGlide™ coated skirts, rings, retainer clips, and chrome piston pinsTwin Cam pistons have ArmorPlating which improves ring seal, eliminates ring micro-welding, and improves the piston's ability to defend against detonation damagePistons are made in the USAWiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings; Wiseco pistons that use XC-rings can only be fitted with Wiseco XC-rings.For '12-'17 Twin Cam 103 cubic inch and '07-'13 Twin Cam 96 cubic inch bored to 103 cubic inch.
Also will fit '99-'06 Twin Cam 88 cubic inch with 4.375" Stroker crankshaft.
Recalibration required.
Cylinder boring required.

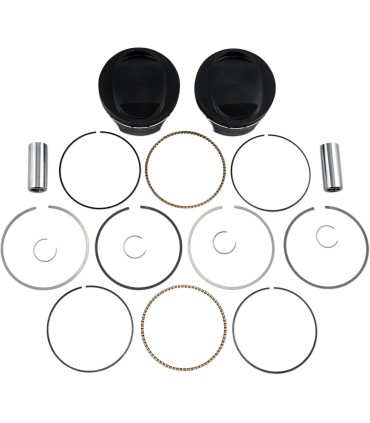

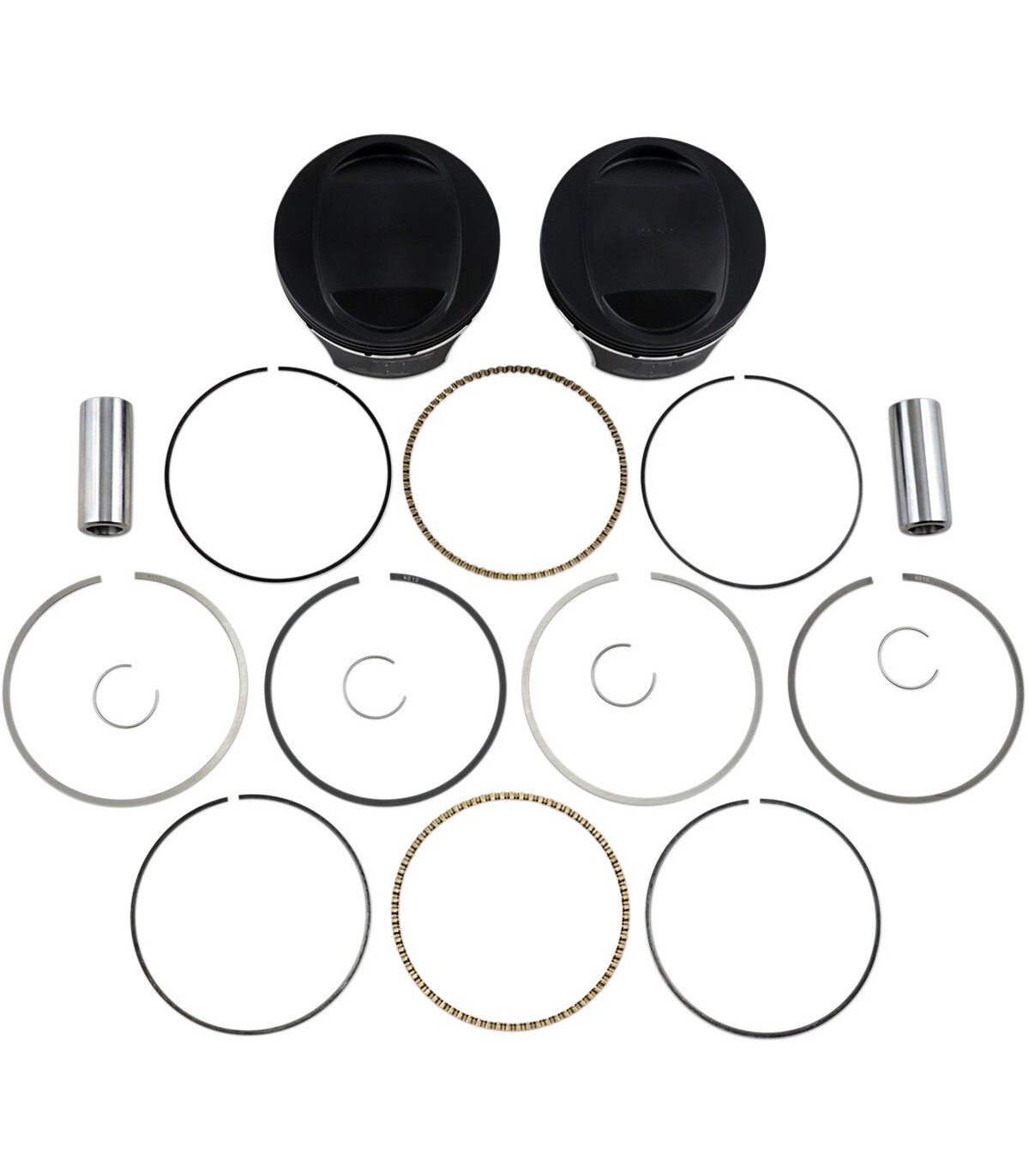

Kit Includes:
• Black Edition™ Pistons
• VM-Ring Package
• Retainer Clips
• Chrome Piston Pins

                Read moreShow less


        09102001



      Data sheet
- Units
 - Kit

- Product Name
 - Piston Kit

- Model
 - Black Edition™

- Piston Material
 - Forged 2618 Aluminum

- Skirt Coating
 - ArmorGlide™

- Bore - Oversize
 - 0,125"

- Engine Type
 - 4-Stroke

- Bore Size
 - 3,885"

- Stroke Length
 - 4,375"

- Displacement
 - 1700 cc

- Compression Ratio Imperial
 - 10.5:1

- Compression Ratio
 - 10,5:1

- Bore Oversize - Imperial
 - 0.125"

- Piston Head Shape
 - Positive, +5.0 cc Volume
